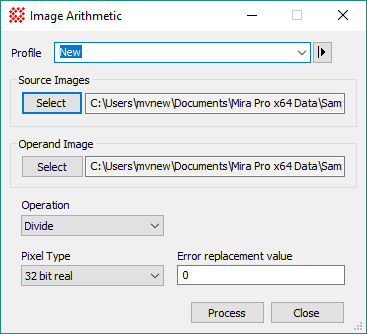

Image Arithmetic


The Image Arithmetic command performs various arithmetic operations between an image and a second "operand" image.

Image Arithmetic Properties

Profile [|>]

Selects the parameter profile for this command and allows you to save or work with existing presets.

[Select]

Opens the Select Source Images dialog to choose images from an image window, folder, files, pattern, or a file list.

[Select] (operand Image)

Selects the image to be applied to the Source images.

Operation

Select the operation to perform from the following options:

Add

Adds the pixel values of the images.

Subtract

Subtracts the second image from the first one.

Multiply

Multiples the pixel values of the two images.

Divide

Divides the second image into the first one. The result is set to Error Value if the pixel in the second image has a value of 0.0.

Blend

Blends (interpolates) the two images by interpolating their pixel values at each point.

Error replacement value

Specifies the value to replace in the pixel when an illegal operation is performed.

Related Topics

Image Math Commands, Value Arithmetic, Arithmetic Operations
