Set Independent Linear Scales


The Set Independent Linear Axis Scales command attaches independent linear coordinate systems to the X and Y axes of the image. To set the same scale for both axes, you can also use the Set Linear Scale command. Keywords that define a world coordinate calibration are inserted into the image header by this command.

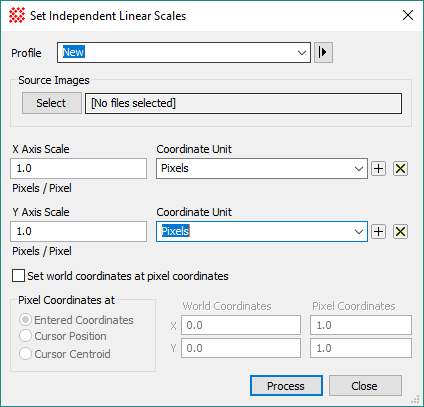

Set Independent Linear Scales Properties

Profile [|>]

Selects the parameter profile for this command and allows you to save or work with existing presets.

[Select]

Opens the Select Source Images dialog to choose images from an image window, folder, files, pattern, or a file list.

X Axis Scale

Enter the X axis scale in linear units per pixel.

Coordinate Unit

Specify the units to be attached to the X axis coordinate system. Use the [+] and [x] buttons to add or delete the currently displayed entry.

X Axis Scale

Enter the Y axis scale in linear units per pixel.

Coordinate Unit

Specify the units to be attached to the Y axis coordinate system. Use the [+] and [x] buttons to add or delete the currently displayed entry.

 Set world coordinates at pixel coordinates

Check this box to enter a coordinate value at a pixel location.

If checked, the properties below are enabled and must be specified.

If not checked, the coordinate scale begins with world coordinate (0,0) at pixel position (1,1).

Pixel Coordinates at

In this section, select the method for entering the Pixel Coordinates fields from the bullet list.

 Entered Coordinates

Accepts the pixel coordinates you enter into the Pixel Coordinates fields.

 Cursor Position

Accepts the location of theImage Cursor as the pixel coordinates. Entries in the Pixel Coordinates fields are ignored.

 Cursor Centroid

Calculates the centroid position near the Image Cursor to get the pixel coordinates. Entries in the Pixel Coordinates fields are ignored.

World Coordinates

Enter the X and Y world coordinates corresponding to the pixel coordinate values.

Pixel Coordinates

Enter the pixel coordinate values when selecting the Entered Coordinates bullet option.



This command applies a World Coordinate System ("WCS") calibration to the image or image set. This calibration replaces any existing WCS. However, this command creates an Undo copy so that you can use the Edit > Undo (Ctrl+Z) command to restore the previous coordinate system. To save the calibration permanently, save the image in the normal way. The screenshot below shows a FITS Header Pane with coordinate system keywords added to the image header by this command. In this example, the same scale was applied to both the X and Y axes.

Generate/LINEAR-CAL-KEYWORDS.jpg

Related Topics

Set Linear Scale, Set Linear Coordinate Units, Set Equatorial Scale, Set Arcsecond Scale, World Coordinate System
