CPlotView:AddPoints

The AddPoints method plots data held in the class data matrix. The data matrix is a CMatrix that can hold one or more series of x,y data as well as y error bars and x,y error bars. The illustration below shows all three types of matrix data.

Syntax

bSuccess = CPlotView:AddPoints()

bSuccess is the returned success code. On success it is true, otherwise false.

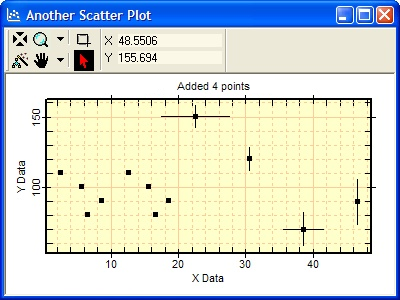

Scatter plot showing 8 (x,y) points plus 4 additional points with error bars added using the present method. All 12 points could have been plotted at one time.

This method adds data points to the current series. All the points in the class data matrix are added. To set the current plot series, use SetIndex.

Example

Assume that a CPlotView V exists and is attached to the window shown above. The script below added the 4 points with error bars to the plot window:

V:SetCurrentIndex(2)	-- select the plot series
V:Empty()	-- clear existing data from the array
V:Add( 38.52, 70.5, 3, 12)	-- x, y, xerrorbar, yerrorbar
V:Add( 22.52, 150.5, 5, 8)	-- x, y, xerrorbar, yerrorbar
V:Add( 30.5, 120.22, 8)	-- x, y, yerrorbar
V:Add( 46.5, 90, 16.5)	-- x, y, yerrorbar
V:AddPoints()	-- add the data
