CGridView:Class Description

CGridView Class Description

The CGridView class provides an interface to a 2-dimensional grid of values like those used by the Mira user interface to report measurements or other values. This class can create a grid window for output from the script or attach a grid window already on the Mira desktop. A script can be used to work with the cell data for, example to do further processing like computing statistics using the CStats class, performing least squares fitting using the CLsqFit class, and so forth. If your script creates a grid, the Grid Window has full access to the Mira GUI functions such as Mira pull-down and pop-up menus, or it can execute a new script as described below.

This class is similar to the CGrid class but offers more functionality. The primary differences between the CGridView and CGrid classes are as follows:

The CGrid does not support all features of the CGridView class, including multiple grid sheets.

Whereas the CGridView class can either create a grid window or attach to an existing grid window, the CGrid class can only create a dialog window and cannot attach to an existing grid.

Note that scripts executed from a CGrid dialog, Mira Grid View window, or Grid Pane are all provided a CGridView object for manipulating the grid window that launched the script.

Grid Controls

A grid control is a table consisting of cells arranged in a rectangular grid defined by the number of columns wide and the number of rows tall. Just as a Mira image window holds an image set consisting of multiple images, the Mira grid window holds a set of grids called "sheets". By default, a CGridView is created with 1 sheet, but you may create it with additional sheets using the GridParams table or add sheets later by using AddSheet. You may switch between sheets using the tab below the grid window or using SelectSheet in a script. NOTE: All grid commands work with the top-most sheet in the grid window.

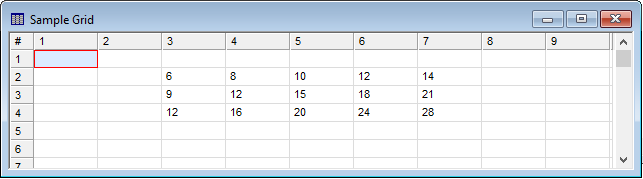

Below is a simple grid view window created by the CGridView class.

Executing Scripts from Grid Windows and Grid Panes

The Execute Script menu command may be used to open and execute a script directly from a Mira Grid Window. When a script is executed from this command, it is automatically sent a CGridView object named ParentGrid that provides access to the window's grid control. You can use this name directly in the script or you can rename it, like G = ParentGrid. A sample script to be called from a Grid Window is provided, named Execute from Grid Window test.lua.

A script can also be executed from a Grid Pane (e.g., containing measurements) attached to an Image Window. In this case, the Execute Script command is available only using the pane's pop-up menu opened using a right mouse click. A sample script to be called from a Grid Pane is provided, named Execute from Grid Pane test.lua.

Usage

Construction

Object = new_gridview()

Object = attach_gridview()

Object = attachlist_gridview()

Object = CGridView:new()

Object = CGridView:Attach()

Object = CGridView:AttachFromList()

Destruction

Object:delete()

Creation - Non-class Functions

These functions are normally used to create and attach a new CGridView object as an alternative to the class-based construction methods.

new_gridview	Creates a new instance of the CGridView class. The grid defaults may also be set using the GridParams table.
attach_gridview	Creates a new CGridView object attached to the top-most grid window on the Mira desktop. This is equivalent to the Attach class method.
attachlist_gridview	Creates a new CGridView object attached to a grid window selected from a list of grid windows on the Mira desktop. This is equivalent to the AttachFromList class method.

Construction and Destruction - Class Methods

new	Creates a new instance of a CGridView object. The grid defaults may also be set using the GridParams table.
delete	Deletes the instance of the CGridView object.
Attach	Creates a new CGridView object and attaches it to the top-most grid window on the Mira desktop.
AttachFromList	Creates a new CGridView object and attaches it to a grid window selected from a list of grid windows on the Mira desktop.
Close	Closes the CGridView window
GridParams table	The GridParams table may be used to initialize the properties of the new CGridView object when created.

CGridView Methods
