Block Average Filter
The Block Average Filter averages blocks of pixels into super pixels to increase the signal to noise ratio in return for reducing the spatial resolution. Also see the similar Block Sum Filter.
The Block Average Filter command opens
from the Image Window > Process
> Filters menu and
button

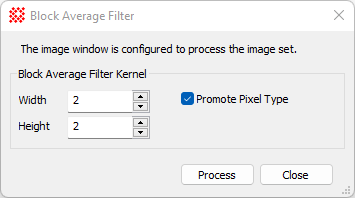

on the Main Toolbar. The "immediate"
form, shown first, opens when an image or image set is displayed in

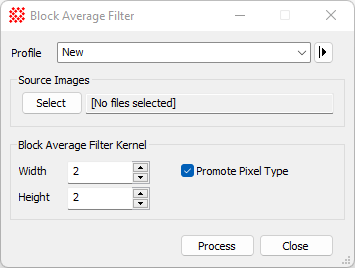

the top-most window. The general form can be used to select source
images from folders, windows, or by matching templates.
Block Average Filter Properties
|
Profile [|>] |
Selects the parameter profile for this command and allows you to save or work with existing presets. |
|
[Select] |
Opens the Select Source Images dialog to choose images from an image window, folder, files, name template, or a Mira File List. |
|
Width |
Specifies the width in pixels of the block being averaged. For example, if Width = 2 then every 2 pixels is averaged in the horizontal direction. |
|
Height |
Specifies the height in pixels of the block being averaged. For example, if Height = 2 then every 2 pixels is averaged in the vertical direction. |
|
Promote Pixel Type |
Specifies whether the pixel type of the resulting image is promoted to a greater bit depth to hold the increased statistical significance of the block averaged pixels. |
Block averaging averages the pixel values in each m x n block. Since the new value is an average of other pixel values, numerical overflow cannot occur in the output pixel. However, the resulting value has higher statistical significance since m x n values are averaged to calculate it. For an integer pixel type, this means the averaged values can be fractional. For example, averaging 4 integer pixel value can give a resulting value that is a while number plus 0.25, 0.5, or 0.75. If the pixel type was kept in integer form, the result would be rounded back to an integer value. If the pixel type was instead promoted to a floating point type, then the resulting pixels could represent the 0.25, 0.5, 0.75 excesses. ThePromote Pixel Type check box is provided to offer this option. There are cases in which the result should have an integer pixel type and other cases in which the increased significance is wanted.
