Image Registration Example

The example below illustrates the basic steps of registering images using the Tracking strategy. This method can be used to quickly collect reference points if each successive image is within ~10--20 pixels of being registered to the previous one. This example considers the case of simple shift misalignment, which might be caused by the field of view drifting or wobbling but not changing scale or rotating. The latter situation requires using the Shear transformation. This example assumes that the images can be aligned using the Shift transformation. For more complex registration needs, see the Tutorial: Introduction to Image Registration.

For this example, a set of 3 images was loaded into an Image Window and the Register Images commands was clicked to open the Image Registration Toolbar and begin the registration process. The main commands are operated from buttons on the Image Registration Toolbar. Should we need to change the parameters of the registration, we open the Preferences dialog by clicking on the toolbar.

#### First, Examine the Images

Usually it is a good idea to characterize the images—to see what you have—before choosing a method. When Mira displays an Image Set, it also opens the Animation Toolbar at the bottom of the Image Window. This makes it easy to characterize the images. Click to start the images animating under software control. Choose a frame rate of about 4 to 8 frames per second.

There are two observations we need to make:

• How do the images compare, overall? Does there appear to be only a shift between the images? Or is there a rotation?

• How does a point source look under magnification? Is it round? How much does it move between images? To get a magnified image, we could just place the mouse over a point and observe the magnified view, or we could magnify the entire image set and move it around looking for a good sharp feature common to all.

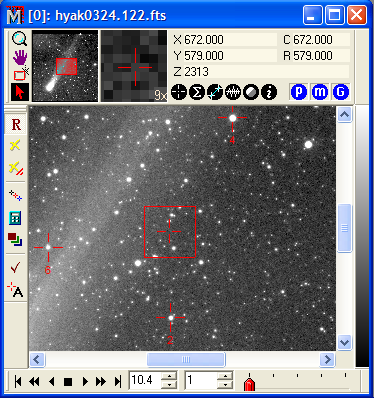

By stepping through the image set, we determined that the images had no significant rotation. therefore, we can get away with marking only 1 point on each image. Usually it is good to mark 5 to 10 points around the image to get a good overall "average" registration solution that is less sensitive to the statistical fluctuations of using 1 position in the presence of noise. The single marked point is shown in the first figure. The mouse was clicked near the point indicated. Mira found the local centroid position near where the mouse was clicked, then lock onto this position as the registration point. Note: You do not have to use centroid positions. Instead, you can have Mira adopt the literal position where you click the mouse.

#### Measuring the Misalignment

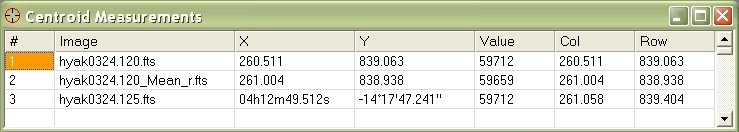

Visualizing the images through animation begs the question of how far out of registration the images actually are in a numerical sense. To answer that, we should measure the centroid position for a point such as the one we marked for registration. To do this, we fist check that the Measure Image Set flag is set to measure the entire set. The button on the Image Toolbar should be pressed. Next, we move the Image Cursor so that its center is near the point of interest and click to measure the centroids of all the images. The results are reported in the Centroid Measurements window as shown below.

By looking at the Col and Row columns on the right side of the table, we can see a shift of approximately 0.5 pixels in both directions. That is small, but certainly important to correct for some applications like combining the images by the Median value.

Now you need to have the same star position measured in the other 2 images of the set. To do this we need to track the positions through the image stack. Click to track the centroid position through the image stack. We now have a registration point in all images. You might click the button on the Animation Toolbar to step through the image set noticing where the tracked markers actually got placed. If one is wrong, then you need to delete it (Shift + mark it again) and then mark the point where it should be (if not in Mark mode, click to activate marking mode and then click on the correct point).

#### Compute the Transformations

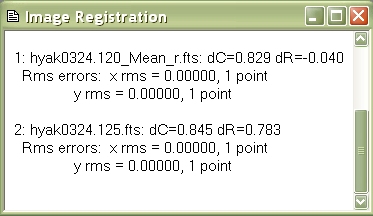

Next we want to compute and apply the transformations. The transformation calculates the amount to shift the images to bring them into alignment. Click to calculate the transformation. If Verbose is checked on the Resampling Preferences page, the result of the calculations is listed in a Text Editor like that shown below. We can save this, perhaps after typing in some notes or deleting things that don't need to be saved, using the Editor's menu commands. In the Editor, below, dC and dR give the offset required to bring the images into alignment.

#### Apply the Transformations

Since we marked only 1 point, the RMS errors shown above are all identically 0. If more points were marked the RMS would be positive and would estimate of the amount of uncertainty in the transformations. In this case we are ready to apply the transformation to align the images. This involves the process of resampling the images, to re-evaluate their luminance values at fractional pixel locations. To align, click . The resampled images replace the original images in their Image Window.

#### Check your Work

The final step is to examine the quality of the alignment. This calls for another round of animating through the Image Set. On the Animation Toolbar, click to start the animation. A numerical assessment could be made by measuring the centroid position again for some well exposed, clean point source in the image. If ~5 or more points are used so that the RMS error is meaningful, then the amount of variation in the centroid position should be about what you would expect from the RMS.

Finally, if we don't like our work, we can perform an Undo and mark some more or some different points. When we get the result we want, the images are ready for Combining, Saving, or whatever application we had in mind.
